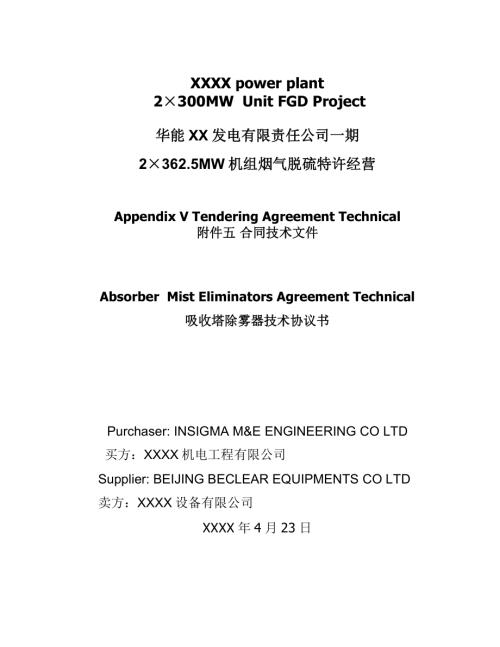

1、XXXX power plant 2300MW Unit FGD Project華能XX發電有限責任公司一期2362.5MW機組煙氣脫硫特許經營Appendix V Tendering Agreement Technical 附件五 合同技術文件Absorber Mist Eliminators Agreement Technical 吸收塔除霧器技術協議書Purchaser: INSIGMA M&E ENGINEERING CO LTD買方：XXXX機電工程有限公司Supplier: BEIJING BECLEAR EQUIPMENTS CO LTD賣方：XXXX設備有限公司XXXX年4月2

2、3日TABLE OF CONTENTS目錄Section 章節Page 頁碼1.0GENERAL概述- 2 -2.0SCOPE OF SUPPLY 供貨范圍- 2 -3.0DESIGN CRITERIA 設計標準- 3 -4.0PERFORMANCE GUARANTEES 性能保證值- 6 -5.0SITE DESIGN CONDITIONS 現場設計條件- 8 -6.0CODES AND STANDARDS 規范與標準- 8 -7.0SUPPLIER DOCUMENT SUBMITTAL AND ACCEPTANCE賣方文件提交和買方確認- 9 -8.0QUALITY ASSURANCE Q

3、UALITY CONTROL 質量保證質量控制- 10 -9.0TESTING 測試- 11 -10.0NAMEPLATES, TAGGING AND MATCH MARKS 銘牌、標簽和裝配標記- 12 -11.0SPECIAL PACKAGING, PROTECTION AND SHIPPING INSTRUCTIONS包裝、保護和運輸專項說明- 12 -12.0TECHNICAL SERVICE技術服務- 13 -13.0INFORMATION TO BE SUBMITTED AFTER AGREEMENT 協議簽訂后的提資- 14 -ATTACHMENT A: DESIGN DATA-

4、 16 -附件A 設計數據- 16 -ATTACHMENT B: SUPPLIER FILL-IN DATA SHEETS 附件B 賣方的數據填充頁- 19 -Performance Guarantees: 性能保證值- 23 -List of Scope of Supply (Supplier to state below.)- 24 -供貨范圍（賣方填寫下表）- 24 -Spare Parts and Special Tools備品備件與專用工具- 25 -Services： (Supplier to state below.) 服務- 26 -1.0 GENERAL概述1.1 The f

5、ollowing terms are used in this agreement technical and are defined as follows:本技術協議所用下列術語的定義如下 ：Project Name:HuaNeng HuNan YueYang power plant 2362.5MW Unit FGD Project項目名稱： 華能XX發電有限責任公司一期2x362.5MW機組煙氣脫硫特許經營工程Purchaser:INSIGMA買方： 網新Supplier:BEIJING BECLEAR EQUIPMENTS CO LTD賣方： 北京貝可萊設備有限公司SubSupplie

6、r:Provider of Equipment or Services to Supplier分供貨商： 向賣方提供設備或服務的提供人Engineer:INSIGMA Project Engineer工程師： 網新的項目工程師Project No: WX-L0391S工程編號： WX-L0391SDifferent terminology or definitions may be used in some attachments or references such that the parties involved are not identified as defined above.

7、The Engineer will provide clarification at the request of the Supplier.協議附件中可能會用到不同的術語或定義。工程師將應賣方的要求給予澄清。1.2 This agreement technical covers the general requirements for furnishing Mist Eliminator.本技術協議的內容是對供貨通用要求進行了定義和規定。1.3 This agreement technical is intended to cover the general requirements for

8、 the design, fabrication, testing, and delivery necessary to supply equipment defined in Section 2.0 of this agreement technical. It is not intended to cover the detail design.本技術協議的目的是為了第2.0節中的規定設備順利供應，特此對必要的設計、制造、測試與交貨等工序的通用要求進行定義與規定。但本技術協議并不涉及詳細設計。1.4 Compliance to this agreement technical shall

9、not release the Supplier from following normal industry requirements and good engineering practice.賣方遵守本技術協議的同時，還應遵守工業常規要求，不得超離。1.5 All components, features, and design parameters specified herein are minimum requirements. If the Suppliers design dictates that these minimum requirements be exceeded

10、to meet agreement technical performance guarantees and to provide a safe, reliable operating unit, then the Supplier shall inform the Purchaser of any required changes or deviations.本技術協議中規定的各種部件、特性和設計參數均為最低要求。若賣方的設計表明已超過了規定的性能保證值，使得設備更安全可靠了，則賣方應將任何變更或偏離通知給買方。1.6 All equipment supplied is to be new,

11、 unused, and undamaged. Mist eliminator is made of not reclaim polypropylene.所供一切設備均應為全新的、未曾使用過的完好產品。除霧器材質為非回收聚丙烯（PP）粒子所構成。1.7 If the performance of mist eliminator cannot satisfy various guaranteed performance indicators specified in the Attachment B, the seller shall be obliged to repair or replac

12、e the equipment or the component to achieve the requirements of performance guarantee.若除霧器性能不能同時達到“附件B”中各項性能保證值，則賣方應免費修理、更換設備或部件，以至達到性能保證值要求。1.8 The attachments and references to this agreement technical are an integral part of this agreement technical and are binding with respect to the services an

13、d equipment provided by the Supplier.本技術協議的附件是本技術協議的有機組成部分，對賣方提供的所有服務與設備均有規范作用。1.9 All units shall be in metric. A KKS identification system will be adopted.本技術協議中的單位均采用國際單位制。設備標識采用KKS系統。1.10 In case there are discrepancies between English version and Chinese version of this 技術協議, Chinese version pr

14、evails over English version. 本技術協議條款，如遇英文和中文不一致處，以中文為準。1.11 All documents and drawings provided by Vendor shall be in Chinese.所有由賣方提供的文件和圖紙應采用中文書寫。2.0 SCOPE OF SUPPLY 供貨范圍2.1 Supplier shall provide the complete design, material and assembled modules for the polypropylene mist eliminator in accordanc

15、e with this specification and its attachments. 賣方應遵照本技術協議及其附件的規定，對聚丙烯除霧器進行設計，并提供各種材料和組裝模塊。2.2 Suppliers scope of supply shall include, but not be limited to, the following:賣方的供貨范圍包括，但不限于：2.2.1 Two complete sets of mist eliminator modules, including wash headers and nozzles, for the first stage mist

16、eliminators (one set for each absorber, total 2 absorbers)2套完整的一級除霧器模塊，包括沖洗總管和噴嘴（每臺吸收塔一套,共2臺吸收塔）2.2.2 Two complete sets of mist eliminator modules, including wash headers and nozzles, for the second stage mist eliminators (one set for each absorber, total 2 absorbers).2套完整的二級除霧器模塊，包括沖洗總管和噴嘴（每臺吸收塔一套,

17、 共2臺吸收塔）2.2.3 All parts required for installation of ME modules into Absorber.將除霧器各模塊安裝到吸收塔內所需的各種零部件2.2.4 Identify by marking mist eliminator modules for field installation.標識除霧器的各模塊，以便于現場安裝2.2.5 Packaging of mist eliminators 除霧器的包裝2.2.6 Instruction Manuals （Chinese Version）.指導手冊(中文版)2.2.7 Complete

18、set of Ethafoam Packing for both stages兩級除霧器的整套醚類聚氨酯泡沫填料2.2.8 Special tools required for installation and maintenance安裝和維護所需的各種專用工具2.2.9 除霧器沖洗水管的現場焊接2.3 Suppliers scope of supply specifically excludes the following:特此規定，賣方的供貨范圍不包括：2.3.1 Installation安裝2.3.2 Support beams支撐梁2.3.3 Other parts welding t

19、o the absorber wall其它焊接在塔壁上的部件3.0 DESIGN CRITERIA 設計標準3.1 General總則3.1.1 The mist elimination section of each absorber shall contain two separate flat mist eliminator (a first stage and a second stage).每臺吸收塔的除霧段包括兩級獨立的平板式除霧器（1級和2級）3.1.2 The mist eliminators shall be oriented such that the flue gas p

20、asses through the mist eliminator in the vertical direction.除霧器定位時應保證煙氣以豎直方向從中流過。3.1.3 Mist eliminator shall completely fill all open space over the entire cross-sectional area of the absorber.除霧器應完全占居吸收塔整個橫截面上的空間。3.1.4 Automatic wash system shall be set for the upstream and downstream of the first

21、stage mist eliminator and the upstream of the second stage mist eliminator.在1級除霧器的上下游以及2級除霧器的上游應安裝自動沖洗系統。3.1.5 Pipe materials, joint design and fabrication techniques selected shall be suitable for service in the Flue Gas, Limestone Slurry, and Wash Water as identified in this agreement technical. M

22、E Wash Headers are exposed externally to the flue gas and limestone slurry. Header internals are exposed to the ME Wash Water. 所選擇的管道材料、接頭設計與制作技術應適合于在煙氣中、石灰石漿液中與沖洗水中進行本技術協議中規定的檢修工作。除霧器沖洗總管外部直接暴露在煙氣與石灰石漿液中?？偣軆?nèi)部暴露于除霧器沖洗水中。3.1.6 All individual pieces shall be marked with the part number or piece number

23、 as indicated on supplier furnished installation drawings.所有單個部件應標有賣方供應設備圖紙上規定的零件編號或件號。3.1.7 Supplier shall submit to the Purchaser all engineering data which is required for the proper interface between Purchasers and Suppliers scope of supply. Purchaser will submit design and performance data and

24、drawings for equipment items supplied by the Purchaser to interface with the Supplier furnished materials. Supplier shall review these items for conformance with his requirements. 對于買方與賣方供貨范圍之間的接口連接，賣方應向買方提交接口所需要的所有工程設計數據。對于買方提供的、用于與賣方提供的材料進行接口連接的設備項目，買方應向賣方提資有關設計與性能數據與圖紙。賣方應審核這些設備項目是否與其要求相一致。3.2 Ma

25、terials of Construction構材3.2.1 Mist eliminator shall be constructed of polypropylene with 10% of glass, Mist eliminator is made of not reclaim polypropylene.除霧器采用聚丙烯材料制作，含10%的玻璃纖維, 除霧器材質為非回收聚丙烯（PP）粒子所構成。3.3 Passes (A pass is defined as a change in the direction of gas flow)通道數（通道指煙氣流的方向改變）3.3.1 Firs

26、t stage mist eliminator shall have a minimum of two passes. 1級除霧器有兩個通道。3.3.2 Second stage mist eliminator shall have a minimum of three passes.2級除霧器有三個通道。3.4 Liquid Carryover夾液量3.4.1 The two-stage mist eliminator system shall have a maximum liquid carryover including dissolved solids equal to or les

27、s than the values listed in Attachment A.兩級除霧器最大夾液量（包括溶解固體）應等于或小于附件A規定的值。3.4.2 Liquid carryover will be measured at the mist eliminator outlet under all operating conditions including the maximum superficial gas velocity listed in Attachment A.夾液量應在各種工況下在除霧器出口處測量，包括附件A中的最大表面煙氣速度。3.5 Pressure Drop壓力降

28、3.5.1 Pressure drop through both stages of the mist elimination system shall not exceed the maximum value given in Attachment A when operating at the maximum superficial gas velocity listed in Attachment A.在附件A所規定的最大表面煙氣速度運行時，在兩級除霧器上產生的壓力降不得超過附件A中的最大值。3.5.2 Pressure drop shall not increase more than

29、 10% above the pressure drop measured during initial (clean) operation with the only cleaning conducted by the normal operation of the mist eliminator wash system.壓力降的增加不得超過初始（干凈）運行過程中僅利用除霧器沖洗系統正常運行清理時測得的壓力降的10%。3.6 Design and Construction設計與構造3.6.1 Mist eliminator shall be constructed in modules wi

30、th integral supports that hold the chevron blades together and allow individual modules to be removed in one piece.除霧器應分模塊構造，人形葉片支架為整體式結構，這樣使得各單獨的模塊成整塊裝卸。3.6.2 The size and weight of the individual modules shall be limited such that they can be easily and manually handled by no more than two mainten

31、ance personnel even if fully plugged or scaled.各模塊的尺寸大小和重量應加以限制，以便即使在它們完全被堵塞時也能被兩名以下的檢修人員輕易地人工搬動。3.6.3 Module size shall also allow easy passage of the mist eliminator through the absorber access doors (800x600mm) located at the mist eliminator elevation.模塊的尺寸大小還應允許除霧器能輕松地通過吸收塔上位于除霧器高度的檢修門(800x600mm

32、)。3.6.4 Individual modules shall be capable of being removed without removal of the adjacent modules.各模塊拆卸時應不必拆卸與之相鄰的模塊。3.6.5 Mist eliminator modules must be able to withstand the handling required during transportation and installation without separation of blade supports or loosening of threaded r

33、ods.在運輸和安裝過程中，必須可以在拆分葉片支架或松掉螺紋桿的情況下搬運除霧器模塊。3.6.6 Mist eliminator shall be capable of withstanding high velocity water lancing typically employed during manual cleaning.除霧器應該能夠承受得住人工沖洗時的常用高速水槍的沖刷。3.6.7 Mist eliminator modules shall be of sufficient strength to support fully plugged blade profile. 除霧器

34、模塊的強度應足夠支承葉片被完全堵塞時除霧器模塊和結垢的重量。3.6.8 Mist eliminators shall be capable of withstanding the operating flue gas temperatures and flue gas excursion temperatures listed in Attachment A. There shall be no damage what so ever as a result of these excursion temperatures.除霧器應能承受附件A中規定的煙氣工作溫度和偏離溫度，并且在偏離溫度下不會

35、造成任何損壞。3.6.9 The superficial gas velocity across the face of the mist eliminator will be per Attachment A.除霧器表面上的表面煙氣速度應符合附件A中的要求。4.0 PERFORMANCE GUARANTEES 性能保證值4.1 Supplier shall guarantee the following process parameters:賣方須對以下工藝參數做出保證：4.1.1 Liquid Carryover for drop sizes larger than 15 micron s

36、hall not exceed the limit specified in Attachment A. The measuring method shall be PDPA.粒徑大于15微米的液滴攜帶量不得超過附件A中規定的限制值。采用PDPA測量方法。4.1.2 Flue gas pressure drop through the mist eliminators shall not exceed the maximum value listed in Attachment A with the only cleaning conducted through the normal oper

37、ation of the mist eliminator wash system.在除霧器上的煙氣壓降不得超過附件A中規定的最大值，并且清理工作僅能通過除霧器沖洗系統正常運行來完成。4.1.3 Maximum resistant temperature shall meet the requirement specified in Attachment A.最高耐溫應滿足附件A中規定的要求。4.1.4 Service life shall meet the requirement specified in Attachment A.使用壽命應達到附件A中規定的要求。4.1.5 Wash wat

38、er consumption shall be specified and guaranteed.沖洗水的消耗量應加以規定，并予以保證。4.1.6 If the performance of mist eliminator cannot satisfy various guaranteed performance indicators specified in the Attachment B, the seller shall be obliged to repair or replace the equipment or the component to achieve the requi

39、rements of performance guarantee.若除霧器性能不能同時達到“附件B”中各項性能保證值，則賣方應免費修理、更換設備或部件，以至達到性能保證值要求。4.1.7 The availability shall meet the requirement specified in Attachment A. Availability is defined as following:可利用率應達到附件A中規定的值?？衫寐识x如下：Availability = (A B) / A 100%可利用率(A B) / A 100%Where 其中:A is the equipmen

40、t operation time (h) in guarantee period.A=保證期內的設備運行時間。B is tripping time (h) caused by technical failure, including latency time waiting for spare parts, replacement and equipment repair, but excluding the time needed for reporting to the vendor the trouble.B=因技術故障引起的跳閘時間，包括等待備品備件、更換備件與設備修理的等

41、待時間，但排除向賣方報告故障事宜所需的時間。4.2 All guarantees shall be met simultaneously.所有保證值應同時滿足。4.3 All guarantees shall be met with the equipment installed in the field. The Supplier shall provide any additional allowances necessary to insure that the equipment is capable of meeting the required performance in the

42、 field.隨設備現場安裝完畢后，各項性能保證值應滿足。賣方應提供一定的必要額外裕度，這樣可保證設備能在現場達到要求的性能。5.0 SITE DESIGN CONDITIONS 現場設計條件5.1Location 廠址:省XX市5.2Location of Equipment 設備位置:Outdoor 室外5.3Indoor Ambient Temperature 室內環境溫度:Outdoor Ambient Temperature 室外環境溫度:Min.:-11.8Max.: 39.35.4Relative Humidity 相對濕度:7810%5.5Barometric Pressure

43、 大氣壓:1009.7hPa5.6Elevation of Site 現場海拔:5.7Live Load活載荷:5.8Snow Load雪載:550Pa5.9Wind Load風載:490Pa5.10Seismic Zone 地震區:For the plant location, the seismic peak value (probability: 10%) acceleration is 0.10g, the corresponding basic seismic intensity is 7. 廠址地震動峰值（概率10%）加速度為0.10g，對應地震基本烈度為7度5.11Items 4

44、.8 through 4.10 override any other specified wind, seismic and snow loadings with the exception of national codes, in which case, the more stringent requirement will take precedence.第4.8點至4.10點的風載、地震及雪載值優先于任何除國家標準外的其它標準規定值。而對于國家標準，則在國家標準與上述值兩者中要求較嚴厲者優先。6.0 CODES AND STANDARDS 規范與標準6.1 The accredited

45、 codes and standards, including those listed below, shall be applied throughout the manufacturing and design processes as well as performance items quoted and guaranteed. References to codes and standards shall mean the latest version or revision, effective at the date of order, unless specifically

46、stated otherwise in this agreement technical .在設計與制造過程中自始至終均應采用公認標準與規范，包括下列這些，以及所引用及保證的性能條款。參考的標準與規范應采用訂單日期時有效的最新版本或修訂內容，除非本技術協議書中另有明確規定。AMCA-Air Movement and Control AssociationAMCA空氣運動與控制協會ANSI-American National Standards InstituteANSI美國國家標準協會ASME-American Society of Mechanical EngineersASME美國機械工程

47、師協會ASTM-American Society of Testing and MaterialsASTM美國測試與材料標準規范協會AWS-American Welding SocietyAWS美國焊接協會MSS-Manufacturers Standardization SocietyMSS制造商標準化學會NACE-National Association of Corrosion EngineersNACE國家腐蝕工程師協會NBS-National Bureau of StandardsNBS國家標準局OSHA-Occupational Safety and Health Administ

48、rationOSHA職業安全與健康管理標準PFI-Pipe Fabrication InstitutePFI管道制造協會UL-Underwriters LaboratoriesUL承保人實驗室有限公司UBC-Uniform Building CodeUBC統一建筑法規ISO-International Organization for Standardization 國際標準化組織DIN-German Institute for Standardization 德國標準化協會6.2 All applicable requirements of pertinent Chinese nationa

49、l, provincial and municipal laws, regulations, codes, standards and ordinances will be met.相關的中國國家、省市法律、法規、標準、規范與法令的所有適用要求。7.0 SUPPLIER DOCUMENT SUBMITTAL AND ACCEPTANCE賣方文件提交和買方確認7.1 The vendor shall submit reproducible drawings of good quality for review and approval by INSIGMA. The vendor shall s

50、ubmit AutoCAD files along with each reproducible drawing submittal. Drawings shall be sufficient in detail to locate bolt hole centers, field welding, piecemarks, arrangement, dimensions and information needed for installation.賣方應將各種相關圖紙?zhí)峤痪W(wǎng)新審批，圖紙的質量要高，可以用于復印。隨圖紙應該提供它們的電子版本，電子版采用AutoCAD軟件的文件格式。圖紙內容應該

51、詳細顯示螺栓孔和現場焊接部位的位置、零部件標志、設備分布、尺寸和安裝所需信息內容7.2 Vendor drawings shall report all loads and information required for foundation design including any significant information other than static loads such as impact, vibration, etc.圖紙上還應顯示出基礎設計所需的各種荷載數據和其它信息內容，包括靜荷載、沖擊荷載、振動荷載等等。7.3 A copy of each of the vend

52、ors drawings reviewed by INSIGMA will be returned marked either Approved, Approved As Noted, or Not Approved.經過網新審核的每份賣方圖紙的拷貝均應標上“已批準”、“按批注修改后批準”、或“未經批準”返回。7.3.1 When drawings are returned marked Not Approved, the changes noted thereon shall be made and the drawings resubmitted for review.當標有“未經批準”的

53、圖紙返回時，應根據圖紙上標示出的注示進行更改后，再將圖紙?zhí)峤唤o網新以供審核。7.3.2 Upon receipt of Approved or Approved as Noted drawings, the vendor shall make necessary corrections and shall transmit to INSIGMA certified drawings.在接收到“已批準”或“按批注修改后批準”的圖紙時，賣方應做出必要的糾正，然后將經鑒定的圖紙?zhí)峤唤o網新。7.4 INSIGMA approval of vendors drawings will cover only

54、 general conformity to the project requirements. INSIGMA review does not indicate a thorough review of dimensions, quantities, materials, or accuracy of the information submitted. INSIGMA approval shall not be construed as relieving the vendor from any responsibility for errors or deviations from th

55、e requirements of contract documents or good design practice.網新對圖紙的批準只表明圖紙總體符合項目要求，并不表明網新對圖紙上所標注的尺寸、數量、材料和信息等的準確性進行了徹底的審查。所以賣方不得認為，得到了網新的確認就可減免自己對出現的錯誤或背離合同文件或良好設計方法要求的行為應負的責任。8.0 QUALITY ASSURANCE QUALITY CONTROL 質量保證質量控制8.1 All work on the equipment including engineering design, vendor qualificati

56、on, receipt of raw materials and components, fabrication, truck loading and final shipment, shall follow an approved quality assurance program.有關設備的各項工作，包括工程設計、賣方資格評審、原材料和部件的接收、加工制作、車輛裝卸和最后的運輸?shù)鹊榷紤?yīng)嚴格按照已批準的質量保證大綱執行。8.2 Quality assurance procedures shall be documented by the equipment manufacturer duri

57、ng the course of design and fabrication and shall be made available to INSIGMA.質保程序應該由設備制造商在設計和制作過程編制，并且提供給網新。8.3 Unless otherwise specified vendors standard shop tests shall be performed on all equipment furnished. INSIGMA may or may not elect to witness shop tests, but vendor shall notify INSIGMA

58、at least 10 days in advance of all scheduled shop tests.除非另行規定，應該按賣方標準對各種所供設備進行車間測試。網新可能會也可能不會對車間測試進行見證，但是不管網新是否去見證，賣方都應在各次計劃的測試前10天內通知網新質保部門。9.0 TESTING 測試9.1 Vendor shall advise INSIGMA Quality Assurance of work progress to permit a shop inspection by INSIGMA of all parts and materials being furni

59、shed. An inspection of parts and material, however, may be made by INSIGMA at any time during the progress of work without notice to the vendor.賣方應向網新質量保證人員通告設備和材料的加工進度，以便網新派人到車間去質檢。但是，在賣方未發通知時，在設備和材料加工過程中網新也可以隨時去質檢。9.2 The vendor shall allow the INSIGMA inspector or representative free access to al

60、l parts and areas where the parts and materials under inspection are manufactured or stored.賣方應該允許網新質檢人員或代表自由接近各種待檢部件和自由出入待檢部件和材料的加工和存放場所。9.3 Approval by INSIGMA shall not relieve the vendor of responsibility for furnishing materials and workmanship in accordance with these agreement technical.網新的批準

61、不能減輕賣方根據此技術協議書加工材料及對工藝所應承擔的責任。9.4 The INSIGMA inspector or other authorized representative shall have the option to reject any items of material or workmanship which fail to meet the quality standards consistent with the agreement technical, the project drawings, and good fabrication practice. Such

62、rejection shall prohibit shipment or installation of rejected items until such time as INSIGMA acceptance is obtained. The vendor shall promptly replace or repair the work without cost to INSIGMA.若發現任何材料和工藝不符合本技術協議規定的質量標準，網新質檢人員或其他授權代表應有權拒收。已被拒收的部件或材料應禁止裝運或安裝，賣方應及時予以更換或修復，直至網新驗收合格。更換和修復所需一切費用均應由賣方自行

63、承擔，不得分?jǐn)偨o網新。9.5 Unless otherwise stated, field performance testing will be conducted by INSIGMA. If the equipment does not meet its stated guarantees, the cost of all field testing and/or modifications required to meet the stated guarantees shall be borne by the supplier.除非另有說明，現場性能測試由網新執行。如果設備沒有達到既定

64、的保證值，賣方將承擔所有現場測試和/或?yàn)闈M(mǎn)足既定保證值所作的修改的費用。9.6 In the event that field testing is needed to place the equipment in condition to meet its guarantees and warranties, all such expenses shall be borne by the supplier.若設備需要通過現場測試來達到其性能保證與擔保，則由此所花一切費用應由賣方承擔。9.7 The vendor shall submit shop and site test proposal

65、 for purchaser review within thirty (30) days after contract awarded. Approval by INSIGMA of any tests or inspections shall not relieve the vendor of responsibility for furnishing materials and workmanship in accordance with these agreement technical.合同簽訂后三十（30）天內，賣方應向網新提交一份車間和現場測試方案，供網新審閱。即使網新批準了此測

66、試方案，也不減免賣方應提供符合本技術協議書產品和材料的義務。10.0 NAMEPLATES, TAGGING AND MATCH MARKS 銘牌、標簽和裝配標記10.1 The vendor shall take precautions, such as preassembly and matchmaking in his shop, to minimize field fitup problems. All items must have piecemark numbers corresponding to those shown on the drawings. The order of

67、 erection shall be shown on the drawings.賣方應積極采取預防措施，如在其車間進行預組裝及配套，以使現場裝配問題最小化。所有物件必須帶有與圖紙所示相符的物件編號。安裝順序也應顯示在圖紙上。10.2 All equipment and shipping pieces that must be handled separately during field erection shall be marked with a metal tag secured by a screw or heavy gauge wire. Boxes, bags, or bundl

68、es of small parts shall be tagged in the same manner. Tags, screws, and wire must be corrosion resistant.因在現場安裝過程中，所有設備與裝船物料必須分開搬運，所以應該掛上不銹鋼標簽（牌），標簽用螺釘或大規格金屬絲固定。小部件的箱、袋、綁扎也須以同樣方式貼上標簽。標簽、螺釘與金屬絲必須是防腐的。11.0 SPECIAL PACKAGING, PROTECTION AND SHIPPING INSTRUCTIONS包裝、保護和運輸專項說明11.1 If alloy steels are to b

69、e handled and shipped, vendor shall submit to INSIGMA for approval, provisions for protecting the alloy from carbon contamination.如果要對合金鋼進行搬運與裝運，賣方應向網新提交合金鋼不受碳污染的防護規定，以供批準。11.2 If rubber materials/linings are to be handled and shipped, special precautions shall be taken to prevent exposure to sunlig

70、ht or oil (hydro-carbons), which may degrade the rubber materials. Such procedures and precautions shall be submitted to INSIGMA for review.如果要對橡膠材料/襯里進行搬運與裝運，應進行專門的預防措施，防止可能導致橡膠材料降級的太陽曝曬或油污（碳水化合物）。這些程序與預防措施應提交給網新，以供審核。11.3 Any threaded connections shall be plugged or capped with standard pipe plugs

71、 or caps.各螺紋連接頭應該采用標準管塞或蓋帽進行保護。11.4 All parts and materials shall be suitably prepared for shipment. Where necessary, metal or wood bracing shall be installed to prevent distortion in transit. Temporary shipping braces shall be used where required to maintain proper alignment of the frame and compon

72、ents.應為各種部件和材料做好適當?shù)难b運準備工作。必要時應采用金屬或木質支撐和拉條，以免部件和材料在運輸過程扭曲變形。應該使用一些臨時支撐對擋板框架及其部件進行固定，以保證在運輸過程中它們不會變形和移位。11.5 Similar items shall be securely wired to form bundles. Small articles shall be boxed.類似零件應牢固綁扎一起，成捆運輸。細小物件裝入盒子/箱子內運輸。11.6 Components are to be assembled to the greatest extent possible prior t

73、o shipment to minimize field construction.在裝運前，應盡最大限度地組裝好部件，以將現場組裝工作量減到最小。11.7 Any inlet and outlet flanges shall be covered with plywood or hardboard covers bolted in place.各種進口法蘭和出口法蘭應該用膠合板或硬紙板覆蓋物覆蓋，覆蓋物用螺栓固定就位。12.0 TECHNICAL SERVICE技術服務12.1FIELD REPRESENTATIVE現場代表12.1.1Supplier shall make availabl

74、e to Purchaser, upon request, the services of a Field Representative. The Field Representative shall have a thorough knowledge of supplied equipment and installation procedures.在買方要求時，賣方應派一名現場代表進行現場服務?，F(xiàn)場代表應對所提供設備及其安裝過程非常了解。12.1.2When the services of the Suppliers field representative is required, th

75、e field representative shall furnish written certification to the Purchaser that the equipment has been inspected and/or adjusted by them or under their direction, and that the equipment is ready for service. The certification shall be supplied prior to the field representative leaving the plant sit

76、e. A written service report shall be supplied to the Purchaser within one (1) week of the field representatives visit, fully detailing findings and activities performed during the visit.若需要賣方現場代表提供現場服務，則該現場代表應向買方出具書面證明，證明設備已由他們或在他們的指導下檢查和/或調節完畢，可以投入使用。該證明應在現場代表離開現場前出具?，F(xiàn)場代表進場后一周內應向買方提交一份服務書面報告，詳盡列明在考

77、察現場后所發現的問題以及需相應采取的整改措施。12.2Training培訓12.2.1The supplier will be responsible for the technical training for operation and maintenance personnel to ensure normal running and reliable maintenance of the contractual equipments. The contents of such training shall be in accordance with the project progre

78、ss. 為使合同設備能正常安裝和運行，賣方有責任提供相應的技術培訓。培訓內容應與工程進度相一致。12.2.2The place, date and trainees of training shall be agreed by and between Purchaser and Supplier.培訓的時間、人數、地點等具體內容由雙方商定。12.2.3The Supplier will provide the trainees equipment, place, document and other facilities as well as accommodation and transpo

79、rtation. The required teaching materials will be provided by the Supplier.賣方為買方培訓人員提供設備、場地、資料等培訓條件，并提供食宿和交通方便。12.3Design Liaison設計聯絡 The detailed schedule, data, location and content of design liaison shall be agreed by and between Purchaser and Supplier. 有關設計聯絡的計劃、時間、地點和內容要求由雙方商定。13.0 INFORMATION T

80、O BE SUBMITTED AFTER AGREEMENT 協議簽訂后的提資13.1 Submittals required elsewhere in this agreement technical or its attachments, but not listed in Attachment D, shall be submitted within a time frame such that the Purchaser and Owner may review the information as necessary to meet design and construction s

81、chedules.本技術協議其它章節或附件要求的提資應在各指定的時間段內提交，或者若未指定時間段，則應及時提交。13.2 All final drawings and documents submitted after contract awarded shall be provided with 12 hard copies with original and four electronic files. Format of the electronic file shall be Autocad, MS Word or MS Excel.合同簽訂后應提供所有圖紙和文件的最終版原件及硬塊拷貝

82、12份和電子版四份。電子版應為AutoCAD、微軟Word或微軟Excel文檔格式。DOCUMENT SUBMITTAL SCHEDULE 文件提交進度Documentation to be Submitted After Agreement協議簽訂后提交的文件Submittal Dates(Calendar Days After Agreement)提交時間（協議簽訂后日歷天）Include inO & M是否包括在操作手冊ADetailed List of Documents to be Submitted提資文件清冊10NBInstallation Drawings w/ Marking

83、s安裝圖紙，標有裝配標志15YCList of Standard Shop Tests and Test Procedures標準車間測試項及測試程序清冊30NDCompleted Data Sheets數據填充頁30YEReceiving, Handling, and Storage Procedures/Instructions收貨、運輸和儲存程序/指導45 Days Before Shipping裝運前45天YFDesign, Fabrication, Shop Test and Delivery Schedule設計、制造、車間測試和交貨進度計劃30NGNotification of

84、Shop Tests車間測試通知10 Days Before Test測試前10天NHOperation and Maintenance Manuals for Review操作和檢修手冊（審查版）60NIFinal Operation and Maintenance Manuals操作和檢修手冊（最終版）At Shipping運輸時NJCertified Shop Test Reports審定過的車間測試報告7 Days After Test測試后7天YKQA/QC RecordsQA/QC記錄At Completion of Work完工時NATTACHMENT A: DESIGN DAT

85、A 附件A 設計數據The mist eliminator will be exposed to absorber recycle slurry as follows:除霧器將與以下性質的吸收塔循環漿液接觸：Slurry Properties:漿液性質 Unit 單位Design Coal（設計煤種）check Coal（校核煤種）Temperature溫度C40604060Solid Content 含固量wt.%2020Density 密度 kg/m311641164Clppm20,000（最大40,000）20,000（最大40,000）pH5656Solid Composition固體

86、成分:CaSO42H2Owt.%88.40589.232CaSO3H2Owt.%0.3250.328CaCO3wt.%1.6921.210CaOwt.%00MgOwt.%00Ca(OH)2wt.%/CaF2wt.%0.6290.526Mg(OH)2wt.%/Inerts 惰性物wt.%6.9917.056Fly ash 飛灰wt. %1.9581.647Slurry Particle Size Property 漿液顆粒大小性質Typical Slurry Particle Sizes Range (吸收塔循環漿液) 典型粒徑范圍（吸收塔石膏漿液）Max. Particle Diameter

87、最大顆粒直徑：200 micron 微米Particle Size Distribution 顆粒尺寸分布：70% 60 micron 微米90% 90 micron 微米The mist eliminator will be exposed to flue gas having the following composition: 除霧器將與以下成分的煙氣接觸：Flue Gas Composition: 煙氣成分 Design Coal設計煤種 check Coal 校核煤種Density, 密度 kg/m3 11021102Gas Composition氣體成分:N2-Ar, % vol.

88、 d80.17280.171O2, % vol. d6.1046.095CO2, % vol. d13.71213.718H2O, % vol. w (G) （汽）11.09911.1H2O, kg/h w (L) （液）9999SO2, mg/Nm3 d (實際氧)132265SO3, mg/Nm3 d (實際氧)104104HCl, mg/Nm3 d (實際氧)11HF, mg/Nm3 d (實際氧)00Ash 飛灰, mg/Nm3 d (實際氧)3232The mist eliminator will be washed with water having properties as f

89、ollows:除霧器將用以下性質的水沖洗：Mist Eliminator Wash Water Properties:除霧器沖洗水性質Property性質Amount數據Units單位Note備注Temperature溫度常溫CpH77.9-TDS總?cè)芙夤腆w含量()84254mg/LTSS總固體含量（TSS）82206mg/L包含總?cè)芙夤腆w含量Include TDSTOC總有機碳(TOC)/mg/LChlorides氯化物/mg/LAlkalinity (CaCO3)堿性物/mg/LTotal Hardness總硬度0.81.88mmol/LNa+2.511.4mg/LCa2+1233mg/L

90、Mg2+1.88mg/LK+0.92.8mg/LSulfates (SO42-)硫酸鹽(SO4)840mg/LFe3+0.020.42mg/LSilica硅石/mg/LSpecific Gravity比重1-Absorber Data: 吸收塔數據Property性質Amount數據Units單位Vessel diameter容器直徑12.5mNumber of spray layer噴淋層層數3Spray volume per layer每層噴淋體積流量6625m3/hSpray pattern噴淋方式Down下Spray nozzle type噴淋?chē)娮祛?lèi)型TangentialHollow

91、Cone切向空心錐Number of spray nozzle噴淋?chē)娮鞌?shù)量3x96Normal Flue Gas Flow Rate: 煙氣流量 Property性質Design Coal（設計煤種）check Coal（校核煤種）Units單位Absorber Inlet (standard, wet)吸收塔入口 （標態，濕）1,385,1771,385,177Nm3/h, wetAbsorber Inlet (actual, wet)吸收塔入口（實際，濕）2,104,4712,104,471Am3/h, wetAbsorber Internal (standard, wet)吸收塔內部（標

92、態，濕）1,486,4961,486,501Nm3/h, wetAbsorber Internal (actual, wet)吸收塔內部（實際，濕）1,749,2661,749,283Am3/h, wetAbsorber Gas Velocities: 吸收塔煙氣速度Property性質Amount數據Units單位Minimum Velocity最低速度1.98m/secNormal Velocity正常速度3.96m/secMaximum Velocity最高速度4.36m/secFlue Gas Temperature Conditions: 煙氣溫度條件Property性質Amount

93、數據Units單位Operating Temperature工作溫度5060CExcursion Temperature (for 10 minutes)偏離溫度（10分鐘）90CATTACHMENT B: SUPPLIER FILL-IN DATA SHEETS 附件B 賣方的數據填充頁(Supplier to submit separate set of completed data sheets for each application/size)（不同適用/規格，賣方應分別提供一套數據填充頁）System Supplier Identification:系統賣方標識Supplier:

94、賣方北京貝可萊設備有限公司Mist eliminator Fill-In Data Sheets:除霧器數據填充頁First stage一級除霧器Second stage二級除霧器Model/Style: 型號/類型Beclear-px3-Beclear-px3-IIMaterial of Construction: 結構材料FR PP（玻璃纖維增加）FR PP（玻璃纖維增加）Module Dimensions, (m x m x m):模塊尺寸（m x m x m)2360x639x1842360x649x235Module Weight, (kg): 模塊重量，kg3040Number o

95、f pass通道數23Number of Vanes per Module:每個模塊的葉片數量2026Vane Spacing, (mm):葉片間距3225Vane Thickness , (mm):葉片厚度2.62.6Maximum Allowable Point Load Over 6 Blades, (mm):6片葉片上的最大允許點荷載23.8Kg60.5KgDeflection at Max. Point Load, (mm):最大點荷載處撓度64Maximum Allowable Uniformly Distributed Load, (kg/m2):最大允許均布荷載400500Di

96、stance between mist eliminator and flushing pipes (mm)除霧器和沖洗層之間間距600600Recommended distance from top of highest spray level to bottom of 1st stage mist eliminator (mm)推薦的最高噴淋層頂部至一級除霧器底部間距1016Recommended distance from top of 2nd stage mist eliminator to the absorber outlet (mm)推薦的二級除霧器頂部至出口間距500Total

97、 height of mist eliminator system (including flushing level) (mm) 除霧器系統總高度（包括沖洗層）2635Critical speed (m/s)臨界速度5.86.0Limit drop size (100% total collecting efficiency)極限粒徑2724Bottom Side Wash Rate, (l/min/m2):底側沖洗速度1.910.96Top Side Wash Rate, (l/min/m2):頂側沖洗速度0.64/Total Wash Cycle, (min/hr):總沖洗周期30/11

98、0/1Percent of Cross Section Washed:橫載面被沖洗百分比160160Area Washed, (m2 per face):被沖洗面積（每面m2)196.8196.8Segment Wash Cycle, (min/hr):段沖洗周期10/110/1Instantaneous Wash Flux, (l/min/m2 per face):瞬間沖洗通量14.6314.63Instantaneous Wash Flow, (m3/hr per absorber):瞬間沖洗流量108108Time Averaged Wash Flux, (l/min/m2 per fa

99、ce):時間平均沖洗通量4.780.64Time Averaged Wash Flow, (m3/hr per absorber):時間平均沖洗流量35.284.71Required number of support beam所需支架梁數量55Wash system Fill-In Data Sheets:沖洗系統填充數據頁Min. wash pump capacity (m/h)沖洗泵最小能量， m/h110First stage:第一級Upstream上游downstream 下游Spray levels噴淋層層數11Pipes per level每層管道數55Size of pipe管

100、道規格DN100DN100Wash nozzles per level每層沖洗噴嘴數量112112Wash nozzle type沖洗噴嘴類型實心錐實心錐Spray angle of wash nozzle沖洗噴嘴噴淋角度100100Flow per wash nozzle (m3/h)每個沖洗噴嘴的流量3.783.78Wash nozzle pressure (Mpa)沖洗噴嘴壓力0.20.2Flanges per level每層法蘭數量55Valves per level 每層閥門數量55Pressure at flange (Mpa) 法蘭處的壓力0.20.2Water consumpt

101、ion (m/h) 水耗量14.117.06Second stage:第二級Upstream上游downstream 下游Spray levels噴淋層層數1/Pipes per level每層管道數5/Size of pipe管道規格DN100/Wash nozzles per level每層沖洗噴嘴數量112/Wash nozzle type沖洗噴嘴類型實心錐/Spray angle of wash nozzle沖洗噴嘴噴淋角度100/Flow per wash nozzle (m3/h)每個沖洗噴嘴的流量3.78/Wash nozzle pressure (Mpa)沖洗噴嘴壓力0.2/F

102、langes per level每層法蘭數量5/Valves per level 每層閥門數量5/Pressure at flange (Mpa) 法蘭處的壓力0.2/Water consumption (m/h) 水耗量4.71/Drawings: 圖紙Mist eliminator outline drawing 除霧器外形圖Mist eliminator washing pipes layout 除霧器沖洗管布置圖Connection details of washing pipes 除霧器沖洗管連接詳圖Detail drawing of wash water pipe supports

103、 沖洗管的支撐詳圖Performance Guarantees: 性能保證值(Supplier to state below賣方在下面說明)Pressure Drop maximum gas velocity, (pa):最高煙氣流速時的壓降，pa140mg/Nm3（d）Maximum Droplet Carryover: mg/Nm3(d)液滴最大攜帶量 （干基）mg/Nm3(d)75PaMaximum resistant temperature, (C)最高耐溫，C85CExcursion Temperature (for 10 minutes) (C)偏離溫度（10分鐘）(C)90CSe

104、rvice life, (yr)使用壽命，年1520YrWash water consumption (m3/h)沖洗水消耗量，m3/h43.98m3/hAvailability: 可利用率 (%)98%Quality assurance period質保期2YrNote注: 1、All guarantees shall be met simultaneously. 以上各性能保證值須同時滿足。2、Mist eliminator shall be constructed of polypropylene with 10% of glass, Mist eliminator is made of

105、 not reclaim polypropylene.除霧器采用聚丙烯材料制作，含10%的玻璃纖維, 除霧器材質為非回收聚丙烯（PP）粒子所構成。3、 In the event that the Purchaser has carried out installation, operation and maintenance according to the Instructions and Manuals provided by the Supplier, but the performance guarantees promised by the Supplier in Appendix

106、B can not be achieved, then even the Warranty Period has expired, the Supplier shall also repair or replace relevant equipment or parts thereof at its cost till all guarantees are achieved.若買方按賣方的指導手冊進行安裝、操作、運行和維護，而設備不能達到“附件”賣方承諾的保證值，即使已超過質保期，賣方也應免費修理、更換設備或部件，以至達到保證值要求。List of Scope of Supply (Suppl

107、ier to state below.)供貨范圍（賣方填寫下表）NO.序號Item名稱Type型號Unit單位Quantity數量Provenance產地Manufacturer制造商N(yùn)ote備注1一級除霧器Beclear-PX3-套2廊坊貝可萊2二級除霧器Beclear-PX3-套2廊坊貝可萊3沖洗系統Beclear- PX3-GD套2廊坊貝可萊4沖洗系統支撐FRP套2北京玻鋼院5緊固件PP套2上海含3%余量Spare Parts and Special Tools備品備件與專用工具The Supplier shall provide all special tools in the per

108、iod from the erection, commissioning till the completion of defects liability period. Such tools shall be retained as the properties of the Purchaser at the end of the erection, commissioning and the defects liability period.賣方應提供所有安裝、調試直至缺陷責任期到期期間內所需的所有專用工具。在安裝、調試與缺陷責任期過后，這些工具應作為買方財產進行保留。List of sp

109、are parts for commissioning and quality assurance period (2year operation): (Supplier to state below.)調試與質量保證期（2年）所需的備品備件清單：（賣方在以下填寫）NO.序號Item項目Type型號Unit單位Quantity數量Provenance產地Manufacturer制造商N(yùn)ote備注1一級除霧器Beclear-PX3-組2廊坊貝可萊2二級除霧器Beclear-PX3-組2廊坊貝可萊3噴嘴Beclear-FN個20廊坊貝可萊List of special tools for inst

110、allation and maintenance: (Supplier to state below.)安裝與維護所需的專用工具清單：（賣方在以下填寫）NO.序號Item項目Type型號Unit單位Quantity數量Provenance產地Manufacturer制造商N(yùn)ote備注無List of spare parts for the first plant overhaul (6 year operation): (Supplier to state below.)首次設備大修（投運6年）所需的備品備件清單：（賣方在以下填寫）NO.序號Item項目Type型號Unit單位Quantity
